(E-B2U) Universal Battery Charger

Part Number: E-B2U

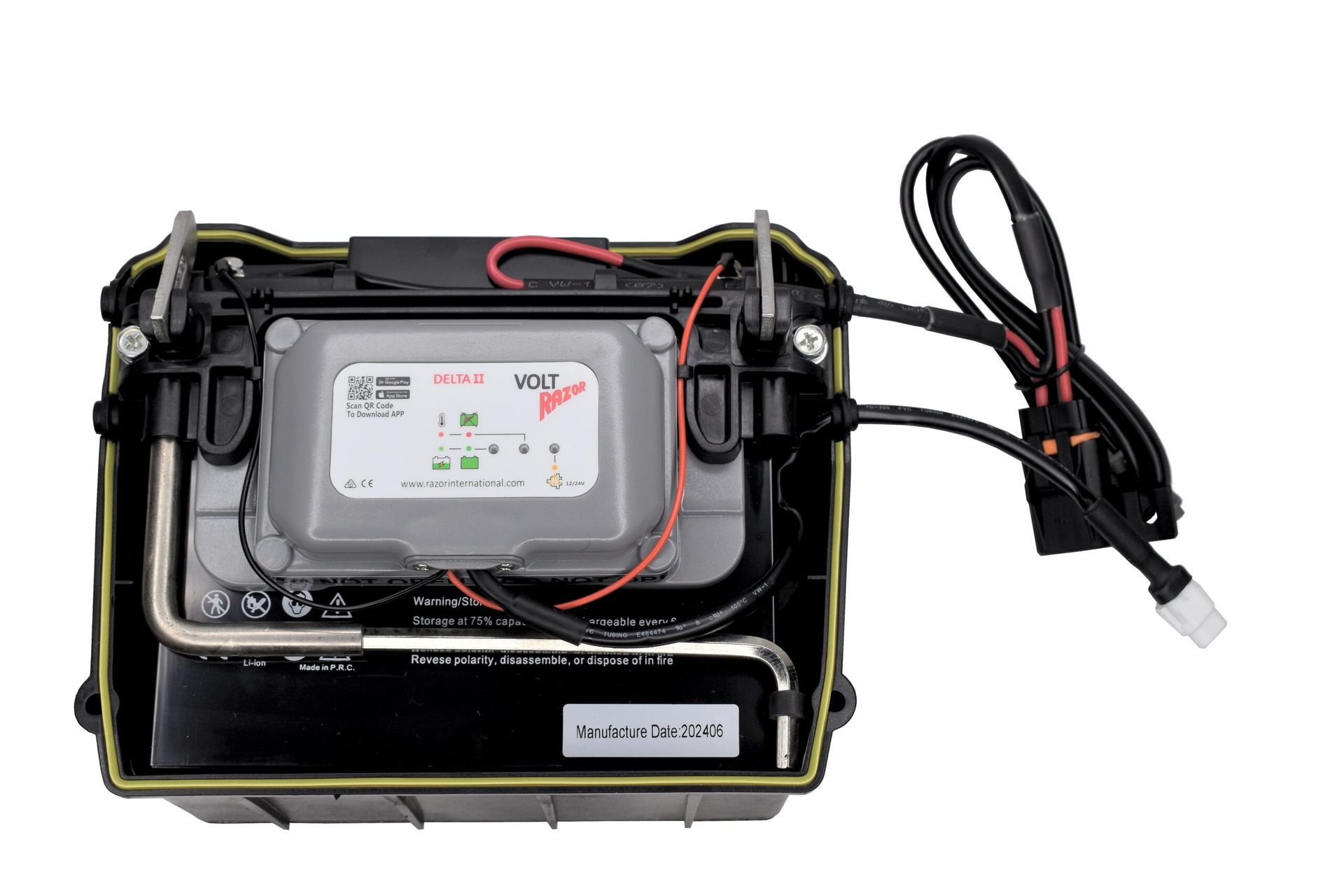

The E-B2U Universal Battery Charger is located inside the Power Kit and has three LED lights.

The LED lights indicate the condition of the battery and power supply from the trailer.

This Universal Charger is capable of charging both a Lead-Acid Battery and Lithium-Ion Battery.

Green, Red & Amber lights are located from left to right hand side of the window on the keypad respectively, two LED’S can illuminate at the same time, see below meaning.

Green flashes Charger is charging the battery

Green illuminates Battery is fully charged

Red flashes Charger is over temperature

Red illuminates Charger is not connected to battery terminals or battery is faulty

Amber illuminates The input charging voltage from external is below 10V

All LED’S flash twice Charger is booting up
